Multi-Level Machined Enclosure with Deep-Cavity CNC Manufacturing

Drawing-based CNC manufacturing for multi-level machined enclosures with deep pockets, integrated mounting features and multi-side access from prototype to OEM production.

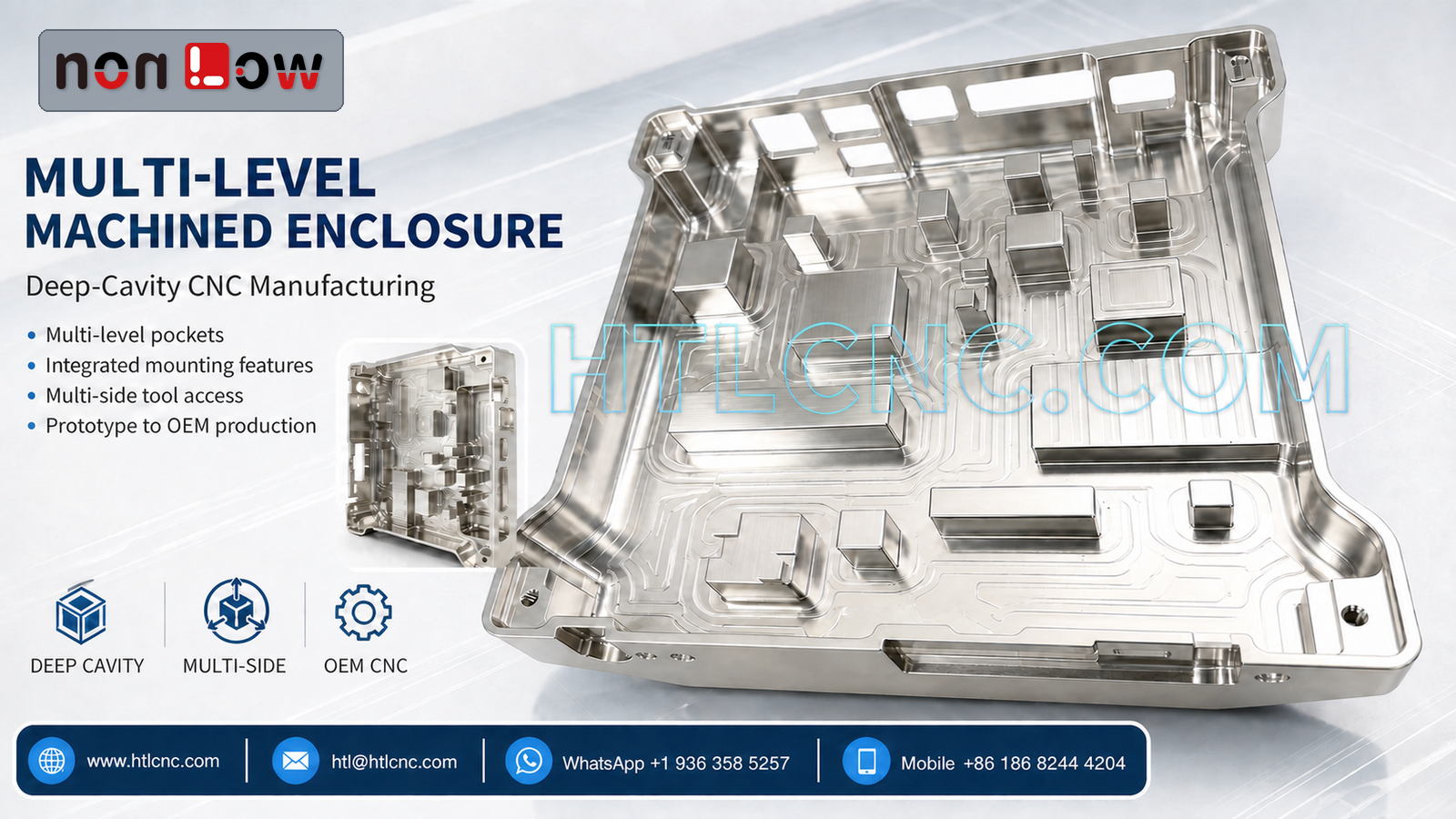

Multi-level machined enclosures can combine a broad internal cavity with raised mounting features, stepped pockets, perimeter walls, side openings and threaded interfaces in one structural component. The enclosure shown here has material removed across several depths while retaining numerous integral bosses and functional surfaces. This type of geometry requires a process plan that protects stability as the cavity develops.

HTL CNC manufactures custom machined enclosures, deep-cavity housings and multi-feature structural components from customer drawings, STEP files and approved samples. We support engineering prototypes, low-volume validation and repeat OEM production. The exact material, dimensions, tolerances, finish and final application must always follow the customer's approved technical documents.

Deep-Cavity Milling and Multi-Level Pockets

Deep and stepped pockets can restrict cutter access, chip evacuation and coolant delivery. As tools extend farther from the spindle, rigidity decreases and vibration risk can rise. Process planning should review pocket depth, internal corner radii, tool reach, roughing allowance and the order used to finish floors and walls.

The visible machining paths pass around many raised features at different heights. A controlled sequence can remove bulk material while preserving support around bosses and perimeter walls. Rest machining may be used where smaller tools must reach areas left by larger cutters, but every operation should follow the approved model and drawing.

Integrated Bosses and Mounting Features

Integral bosses can reduce separate hardware and create direct interfaces for covers, modules or adjacent assemblies. Their position, height, face relationship and any drawing-defined holes or threads may affect final fit. Because the bosses remain after surrounding material is removed, clamping and cutting forces should be managed to avoid marking or deflecting them.

Inspection planning can focus on boss locations, pocket depths, threaded features, mating faces and relationships to the selected datums. Critical dimensions should be identified in the drawing so the machining and measurement plans prioritize functional interfaces rather than cosmetic appearance alone.

Multi-Side Features and Setup Strategy

Openings and holes along the perimeter indicate that some features require access beyond the main cavity face. Depending on the approved geometry and tolerance relationships, the manufacturing route may use controlled reclamping, 4-axis indexing, 5-axis machining or a combination of operations. The correct route depends on tool access, datum continuity, fixture clearance, quantity and inspection needs.

Reducing unnecessary setups can help maintain positional relationships between the internal cavity and side features. However, machine selection should follow the actual drawing. Complex appearance alone does not establish a tolerance or require a specific process.

Wall Stability, Deburring and Surface Treatment

Removing a large volume of material can change component stiffness throughout machining. Fixtures must hold the enclosure securely without forcing thin walls or broad faces away from their free-state geometry. Balanced roughing, suitable finishing allowances and controlled final passes can help manage distortion and surface consistency.

Deburring is especially important around intersecting holes, side windows, pocket edges and threaded interfaces. The component may be supplied as machined or with a customer-specified treatment appropriate to the specified material. Blasting, anodizing, plating, passivation, polishing, painting or another process should be considered only when defined by the drawing. Masking, coating allowance, cosmetic zones and thread protection should be confirmed before quotation.

Inspection from Prototype to OEM Production

Verification may include cavity and step depths, hole positions, thread checks, boss heights, perimeter geometry, mating-face relationships and any drawing-defined flatness or position requirements. Calipers, micrometers, height measurement, gauges and CMM inspection may be used according to the agreed quality plan.

Prototype production allows engineering teams to verify assembly fit, tool access, inspection methods and finish requirements before repeat quantities are released. After approval, controlled programs, repeatable fixtures, revision management and documented inspection points support stable OEM manufacturing.
