Black Cylindrical Mounting Housing Custom CNC Machining for OEM Equipment

Black cylindrical mounting housing custom CNC machining coordinates a large internal bore, split rim, side ports, integrated supports and mounting ears for prototype validation and repeat OEM supply.

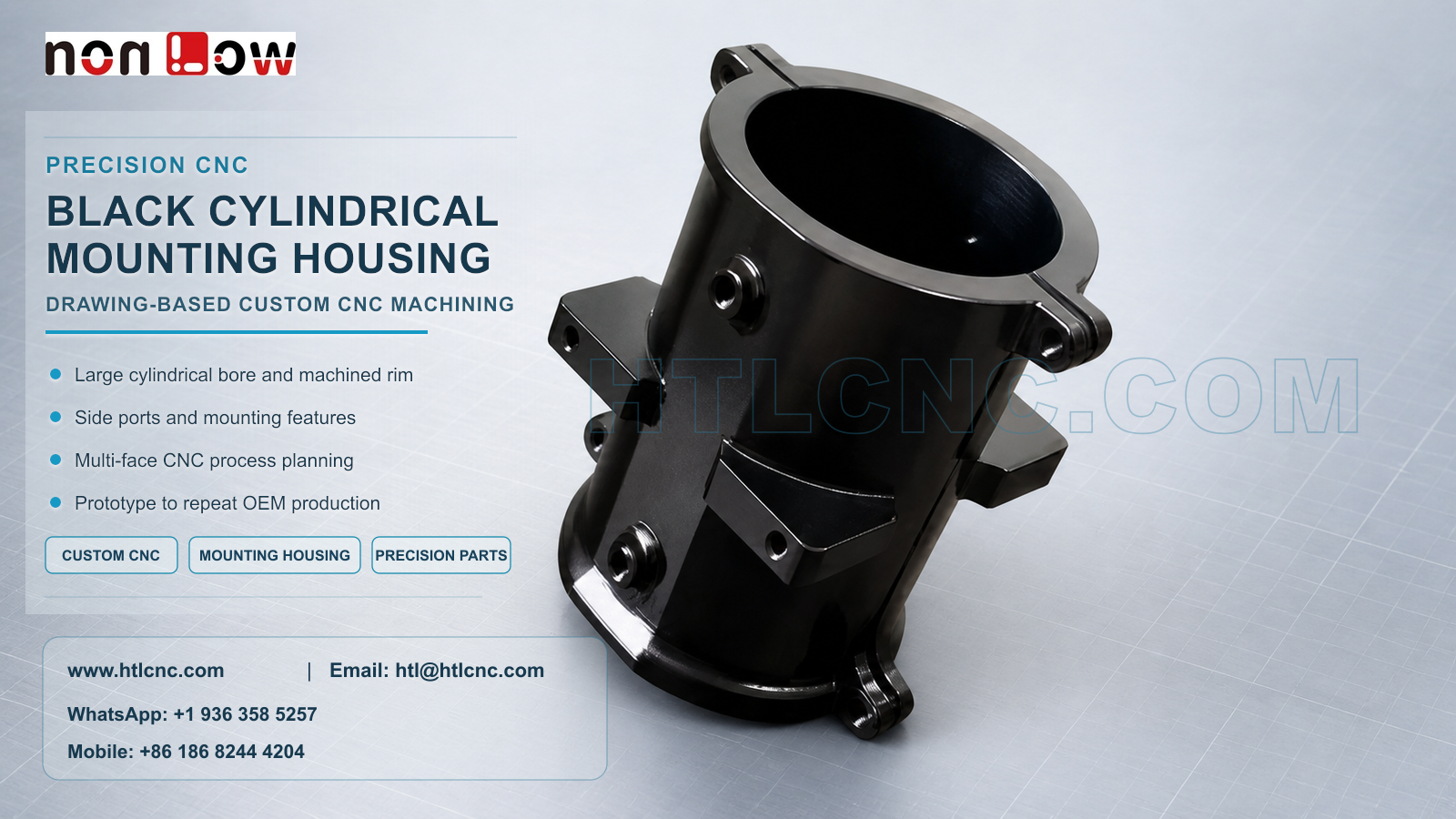

Black cylindrical mounting housing custom CNC machining is used when one compact body must combine a large internal bore with side interfaces, projecting supports and multiple mounting points. The pictured component visibly includes a wide cylindrical opening, a machined upper rim with a split clamp-like feature, side bosses or ports, an integrated rectangular support and lower mounting ears. HTL CNC provides custom CNC machining, precision CNC parts, multi-face CNC milling, prototype validation, low-volume production and repeat OEM manufacturing for overseas equipment builders and product-development teams. The dark surface is visible, but the image does not establish the material, coating type, tolerance values or final application; those requirements must come from the customer's released drawings and STEP model.

What Is a Cylindrical Mounting Housing?

A cylindrical mounting housing is a one-piece structural component organized around a dominant round bore. The bore may receive or surround another assembly, while external bosses, ears and holes connect the housing to a frame or adjacent parts. The pictured geometry suggests an integrated mounting body, but its exact equipment function cannot be confirmed from appearance alone.

For an OEM sourcing review, the buyer should identify the true locating diameter, the seating or clamp region, the mounting datums and the interfaces that control assembly. Mating-part information helps the machining supplier distinguish critical features from simple clearance geometry before fixtures and inspection plans are released.

Large Bore, Rim and Cylindrical Wall Control

The large internal opening is the primary visible feature. A complete drawing should define the bore diameter, length, roundness or other geometric controls when required, plus the relationship between the bore axis and the exterior mounting surfaces. Rim thickness, split location, shoulder geometry and edge requirements should also be stated. No fit or clamp force should be inferred from the photograph.

Depending on size, stock form and tolerance, the bore may be produced by turning, boring, circular interpolation or a combined route. The process plan should retain enough support during roughing and finish the controlled surfaces after the body is stable. Bore gauges, internal micrometers, roundness equipment or CMM probing may be selected according to the released acceptance criteria.

Side Ports, Bosses and Multi-Face CNC Access

The exterior includes features on several directions: side openings, raised bosses, projecting mounting blocks and lower ears. These interfaces create cross-face relationships that may require controlled refixturing, indexed 4-axis access or [5-axis CNC machining](/services/5-axis-cnc-machining) when setup reduction improves feature coordination. A qualified 3-axis route can still be appropriate when fixtures preserve the required datums. Axis count is selected from geometry, tolerance, quantity and cost; it is not a quality claim by itself.

Drawings should distinguish threaded holes, clearance holes, locating holes and intersecting passages. If a side port enters the main bore, the manufacturing plan should include internal deburring and cleanliness verification so a loose edge does not remain inside the housing.

Integrated Mounting Ears and Structural Supports

Projecting ears and support blocks make the part easier to integrate into an assembly, but they also change workholding and tool access. Clamping must support the cylindrical body without marking controlled surfaces or distorting the bore. A practical sequence may establish stable datum faces first, rough the bore and exterior features, then finish the locating diameter and related mounting holes from qualified setups.

The lower ears and side supports are exposed during handling. Deburring should remove sharp loose edges without altering hole entrances, controlled edge breaks or cosmetic transitions. If a surface is appearance-sensitive, protection should begin during in-process transfer rather than only at final packaging.

How Should an OEM Inspect This Housing?

A risk-based inspection plan can cover the main bore, rim and shoulder dimensions, bore-to-mounting relationships, side-port positions, boss heights, ear-hole locations, thread acceptance and drawing-defined geometric controls. Measurement methods may include micrometers, bore gauges, pin and thread gauges, height systems, optical equipment and CMM inspection according to access and tolerance.

Supplier qualification should define which characteristics require first-article results and which need production-lot records. Inspection evidence should identify the controlled part number, drawing revision, purchase order and lot so it remains useful for repeat orders and engineering changes. HTL's [custom CNC machining service](/services/custom-cnc-machining) supports drawing review before the control plan is finalized.

Surface Treatment Must Follow the Released Specification

The pictured housing has a dark surface, but a photograph cannot confirm whether it is anodized, painted, plated, chemically treated or simply shown under controlled lighting. Material compatibility, coating thickness, masking, threaded-hole treatment, bore allowance and cosmetic zones must be specified by the customer.

When a finish changes a functional diameter or mounting face, the drawing should identify pre-finish and final acceptance requirements. Inspection can then be divided correctly between machining and the completed surface-treatment condition.

Prototype Validation and Repeat OEM Production

Prototype validation should use the intended mating parts where possible. Engineering teams can check bore fit, rim engagement, mounting-ear alignment, side-port access, fastener clearance and coating allowance. Any correction should be released through controlled 2D and STEP revisions before low-volume ramp-up.

After sample approval, qualified fixtures, locked programs, first-piece checks, tool-life monitoring and revision control support repeat production. Overseas procurement teams should also align annual demand, order cadence, packaging, destination and delivery planning. HTL's [prototype and low-volume CNC machining service](/services/prototype-low-volume-cnc-machining) provides a staged route from engineering samples to recurring supply.

RFQ Package for Drawing-Based Manufacturing

Send the released 2D drawing and STEP file with material, prototype and production quantities, annual demand, functional datums, bore and mounting requirements, tolerances, surface finish, inspection-document scope, packaging and target delivery. Include mating-part or assembly data when the cylindrical interface or mounting features depend on related components. HTL CNC can then prepare a manufacturing, quality and delivery plan for the actual black cylindrical mounting housing custom CNC machining project.
