Flanged Cylindrical Housing CNC Machining for OEM Mounting Assemblies

Flanged cylindrical housing CNC machining coordinates a large central bore, circular base-flange hole pattern and upper mounting ears around one functional axis.

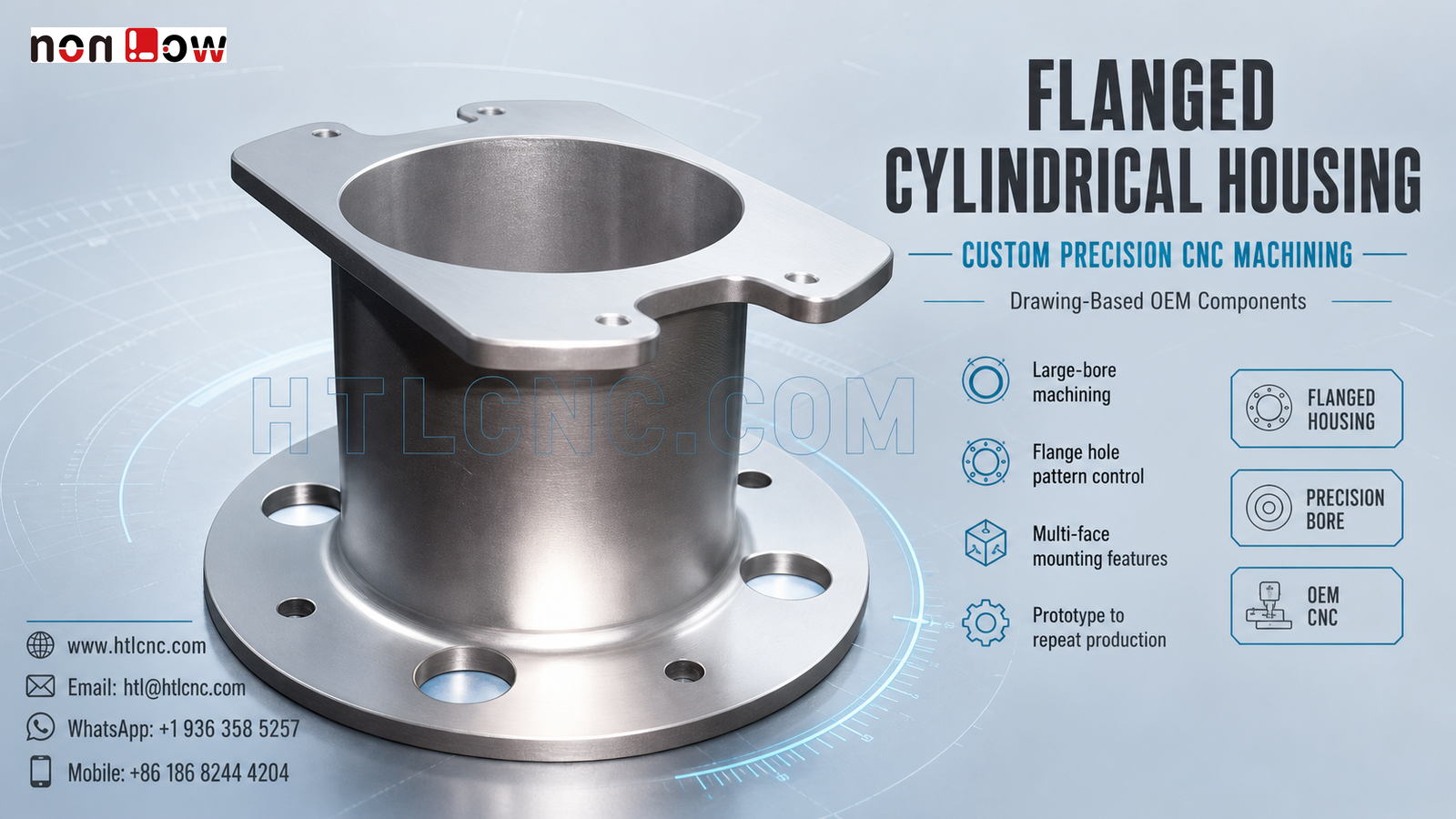

Flanged cylindrical housing CNC machining is required when an OEM mounting component combines a large central bore, a circular base flange, distributed fastener holes and an upper plate with local mounting ears. The pictured one-piece housing visibly integrates these features around a tall cylindrical body. HTL CNC supports overseas equipment builders, product-development companies, engineers and procurement teams with custom CNC machining, precision CNC parts, bore machining, multi-face milling, prototype validation, low-volume production and repeat drawing-based OEM manufacturing. The photograph does not establish material grade, tolerance, load rating, sealing performance, finish or final application; those requirements must be defined in the customer's released 2D drawing, STEP model and assembly specification.

What Must an OEM Define Before Quotation?

The key sourcing question is not simply the outside diameter. The buyer should identify the surface that seats against the machine or frame, the bore that locates the mating component, the upper interface that controls orientation and the holes that provide fastening rather than location. This functional definition helps the supplier separate critical relationships from general clearance features.

An RFQ should include the mating component or an interface drawing when possible. It should state whether the bore axis must be perpendicular to the base flange, whether the upper plate must be parallel to the base and whether any hole in the flange is a locating feature. Without that information, the supplier can price the visible geometry but cannot build a reliable control plan.

Bore-to-Flange Alignment Drives the Process Route

The central bore and lower flange form the dominant visible relationship. If the bore positions a sleeve, bearing, shaft, motor or general assembly, its size, cylindricity, axis and relationship to the flange seating face may affect fit. The exact use cannot be inferred from the image, so drawing-defined controls should match the real assembly function.

A process route may establish the flange face and bore from one controlled orientation, then use qualified datums for the upper mounting features. Turning, boring, circular interpolation and multi-axis milling may be combined according to stock form, size, quantity and tolerance. HTL's CNC turning and turn-mill machining page explains how rotational features can be coordinated with milled interfaces when the geometry supports that route.

Base-Flange Hole Pattern and Seating Face

The circular lower flange visibly contains a distributed pattern of large and small holes. The drawing should distinguish clearance, tapped, locating and counterbored holes, and should state which holes control clocking. Hole position should be related to the bore axis and seating datum where the assembly requires it.

The flange face also needs an agreed flatness, surface condition and edge-break requirement where functional. Clamping and machining sequence should prevent the plate from rocking or distorting. First-piece inspection can verify the bore-to-flange relationship before the remaining batch proceeds.

Upper Plate, Ears and Multi-Face Access

The upper interface has a rectangular form with local ears and smaller holes. These features may provide mounting or orientation, but their exact purpose is not confirmed. Tool access and workholding must protect the finished bore and flange while the top face, outer profile, recesses and holes are completed.

Depending on the drawing relationships, these features may be produced through qualified refixturing, indexed 4-axis work or 5-axis CNC machining. The selected axis count should reduce unnecessary datum transfer and support inspection access; it is not a quality claim by itself.

Inspection Evidence for Supplier Qualification

A risk-based inspection plan may cover bore diameter, bore axis, flange-face flatness, bore-to-flange perpendicularity, flange-hole position, upper-interface height and orientation, ear-hole location, threads and drawing-defined geometric controls. Measurement can combine bore gauges, height systems, pin and thread gauges, surface measurement, CMM probing and approved fixtures according to tolerance and access.

For first-article approval, records should identify the part number, drawing revision, material lot when required and measurement condition. Repeat-order consistency depends on controlled programs, qualified fixtures, first-piece approval, tool-life monitoring and revision control. Inspection documentation should remain linked to the purchase order and released revision.

Finishing, Edge Control and Export Packaging

The bright metal appearance does not prove a material or surface treatment. After the OEM defines material and operating environment, options may include anodizing, plating, passivation, blasting, polishing, painting or another specified process. The central bore, seating face, threads and locating holes affected by coating thickness should be marked for masking, allowance or post-finish inspection.

The flange edge and upper ears can be vulnerable during transport. Packaging may use individual separation, protective sleeves or formed supports so the machined bore, seating face and projecting features do not contact adjacent parts. Cleaning requirements should also address chips that may remain in holes or at the bore transition.

Prototype Approval and Repeat OEM Supply

Prototype quantities allow the engineering team to verify bore fit, flange seating, hole alignment, upper-interface orientation and fastener access using the intended mating components. Any load, vibration, sealing or life test needs customer-defined conditions and acceptance criteria; no performance claim can be made from the image.

After the prototype is approved, the released revision can move into low-volume ramp-up and recurring production. HTL's custom CNC machining service supports drawing review and process planning, while prototype and low-volume CNC machining provides a controlled route from engineering samples to repeat supply. Overseas buyers can include annual demand, delivery cadence, export packaging and requested inspection documents during supplier onboarding.

RFQ Checklist for a Flanged Cylindrical Housing

Send the released 2D drawing, STEP file and relevant assembly model. Include material, prototype quantity, production quantity or annual demand, functional datums, bore requirements, flange-face and hole-pattern relationships, upper-interface controls, tolerances, finish, inspection-document scope, revision status, packaging, destination and target schedule. HTL CNC can then review the actual flanged cylindrical housing CNC machining project with a defined manufacturing and quality plan.
