Large Multi-Pocket Machined Base with Integrated Features for OEM Equipment

B2B drawing-based CNC manufacturing for large multi-pocket machined bases with deep cavities, integrated bosses, channels and repeat OEM production support.

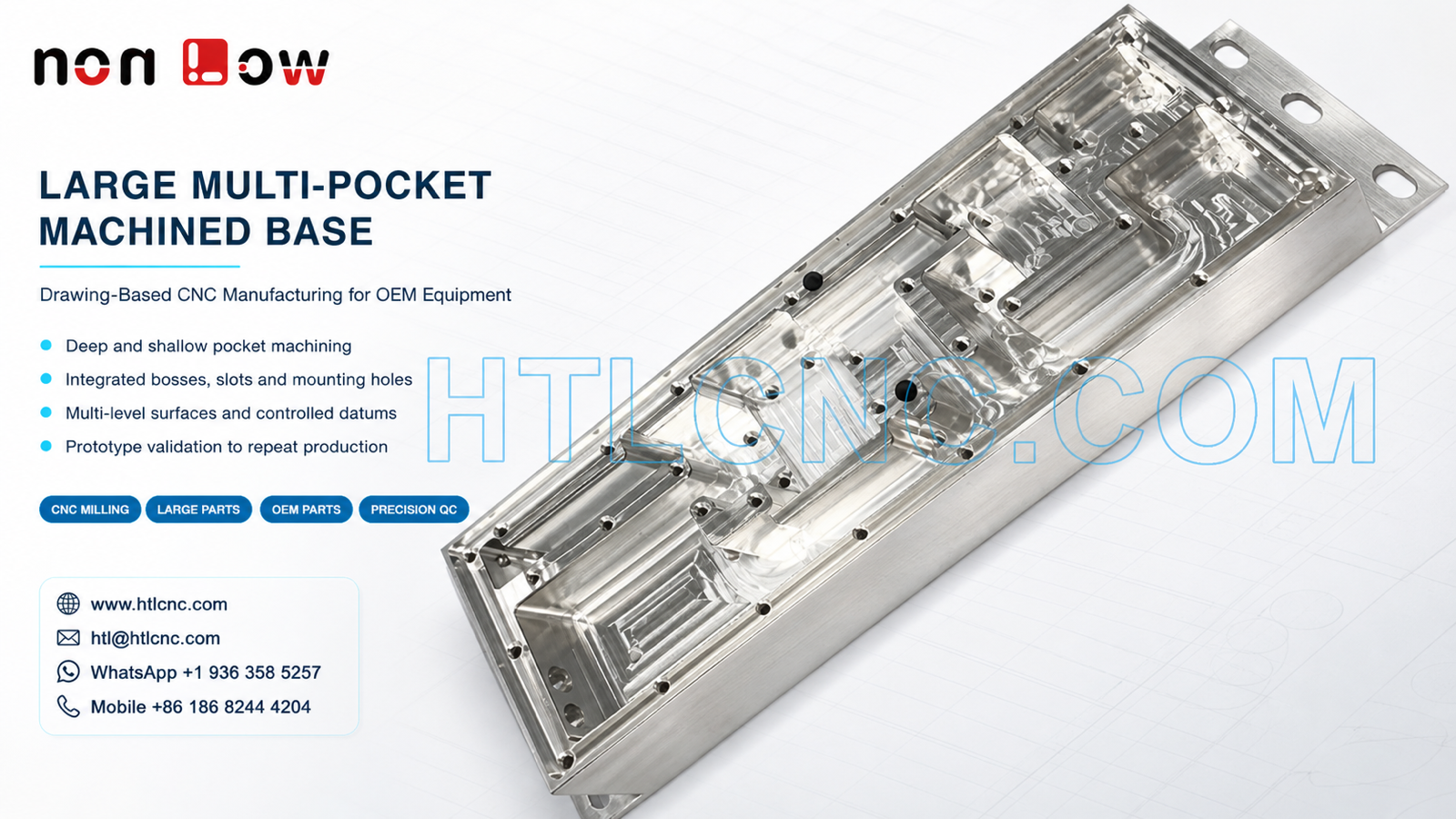

Large structural bases and equipment components often consolidate many functions into one machined part. The component shown here has a long rectangular form with deep and shallow pockets, raised bosses, channels, slots, repeated mounting holes and multiple stepped surfaces. These visible features make material-removal strategy, datum continuity, workholding, tool access and inspection important parts of a B2B supplier review.

HTL CNC provides drawing-based custom CNC manufacturing for overseas OEMs, equipment builders, product-development companies, contract manufacturers, engineers and procurement teams. We support engineering review, prototype validation, low-volume ramp-up and repeat production. The exact material, dimensions, tolerances, finish and final application must follow the customer's released drawing, STEP model and approved sample; they should not be inferred from a photograph.

B2B RFQ and Supplier Qualification

A reliable quotation starts with a complete technical and commercial package. Buyers should provide the 3D model, 2D drawing, specified material, prototype quantity, expected batch size or annual demand, critical dimensions, surface-finish notes, inspection requirements, packaging needs and delivery destination. This allows the manufacturing team to evaluate stock condition, machining access, setup count, fixture requirements, inspection time and lead-time planning against a defined scope.

Supplier onboarding can also include confidentiality requirements, revision control, sample approval criteria and communication responsibilities between engineering and purchasing. Programs, fixture references and inspection records should remain linked to the approved drawing revision. If the design changes, updated files and a clear change record should be released before the next batch begins.

Large-Format Pocket Milling and Material Removal

The component contains extensive open pockets and recessed regions. Removing this volume efficiently while maintaining stability requires a planned sequence of roughing, semi-finishing and finishing operations. Tool rigidity, chip evacuation, cutter engagement and heat control should be considered together, especially where long travel and changing wall conditions are involved.

A controlled process may leave machining allowance around important surfaces until the part has reached a more stable condition. Internal corner radii should be defined on the drawing because milled pockets cannot have perfectly sharp internal corners. Cutter diameter and reach can then be selected around the approved radii, depth and surface requirements rather than assumptions.

Integrated Bosses, Slots and Mounting Holes

Multiple raised bosses and repeated mounting features are visible within the pockets and around the perimeter. Their height, diameter, thread condition and positional relationship should be dimensioned from a stable datum system. Closely related holes should be programmed and inspected from common references to support assembly consistency.

The part also includes long slots, local channels and narrow recessed areas. These features can require different tools and entry strategies from the main pockets. Drilling, interpolation, boring, reaming, tapping or thread milling may be selected according to the released feature definition. Deburring should remove sharp material without rounding functional edges or damaging adjacent datum and cosmetic surfaces.

Datum Strategy and Multi-Level Surface Control

A large machined base can contain several surface levels that must relate correctly to one another. The engineering drawing should identify primary, secondary and tertiary datums, along with the dimensions and geometric controls that matter to the assembly. This helps the supplier select setup references and define inspection methods before production begins.

Broad faces, pocket floors, boss tops and perimeter mounting surfaces may react differently as material is removed. Process planning should therefore consider where the component is supported, when important surfaces are finished and how the part is checked in its free state. Critical relationships should be verified from the agreed datum structure rather than from convenient but uncontrolled edges.

Workholding and Process Selection

Workholding must provide adequate support without obstructing the long pockets, slots and perimeter features. Initial clamping may use stock surfaces, while later operations can use machined references, soft jaws, modular supports or a dedicated fixture. The correct choice depends on component size, access, quantity and repeat-order expectations.

Many accessible features may be completed by 3-axis milling. Indexed 4-axis or 5-axis machining can be considered when side features, angled access or setup reduction justify it. More axes do not automatically produce a better result; the selected route should balance datum continuity, tool reach, cycle time, handling risk and inspection access.

Inspection and Surface-Finish Planning

An inspection plan can cover overall dimensions, pocket depth, boss height, slot width, hole position, threaded features, surface relationships and drawing-defined flatness or profile requirements. Calipers, micrometers, depth tools, height measurement, pin or thread gauges and CMM inspection may be used according to feature geometry and the approved quality plan.

For B2B qualification, customers should define which inspection records are required with prototypes and repeat deliveries. The requested package may include selected dimensional results, a first-article report, material or finishing documents from the relevant source, or batch inspection records. These requirements affect quotation and lead time and should be agreed before supplier nomination.

The part can be supplied as machined or with a customer-specified surface treatment compatible with the released material. Anodizing, plating, passivation, blasting, brushing, polishing, painting or another process should not be assumed from appearance. Coating allowance, masked zones, thread protection, datum surfaces and cosmetic expectations should be included in the RFQ.

Prototype Validation to Repeat OEM Production

Prototype quantities allow engineering teams to verify fit, mounting relationships, access, mating surfaces and inspection methods. Procurement teams can use the same stage to evaluate communication, revision handling, documentation, packaging and delivery performance before approving repeat orders.

After sample approval, controlled programs, repeatable workholding, defined inspection points and version management support low-volume ramp-up and stable recurring production. Forecasts or annual demand help the supplier plan material purchasing, machine capacity, fixture investment, batch size, protective packaging and delivery schedules.

For an engineering and commercial review, send your 2D drawing, STEP file, specified material, prototype and production quantities, annual demand, critical tolerances, inspection requirements, surface-finish notes, packaging needs and delivery destination.
