Multi-Interface Equipment Housing CNC Machining for Integrated OEM Assemblies

Multi-interface equipment housing CNC machining coordinates a large grooved opening, circular interfaces on adjacent faces and multi-directional holes for drawing-based OEM programs.

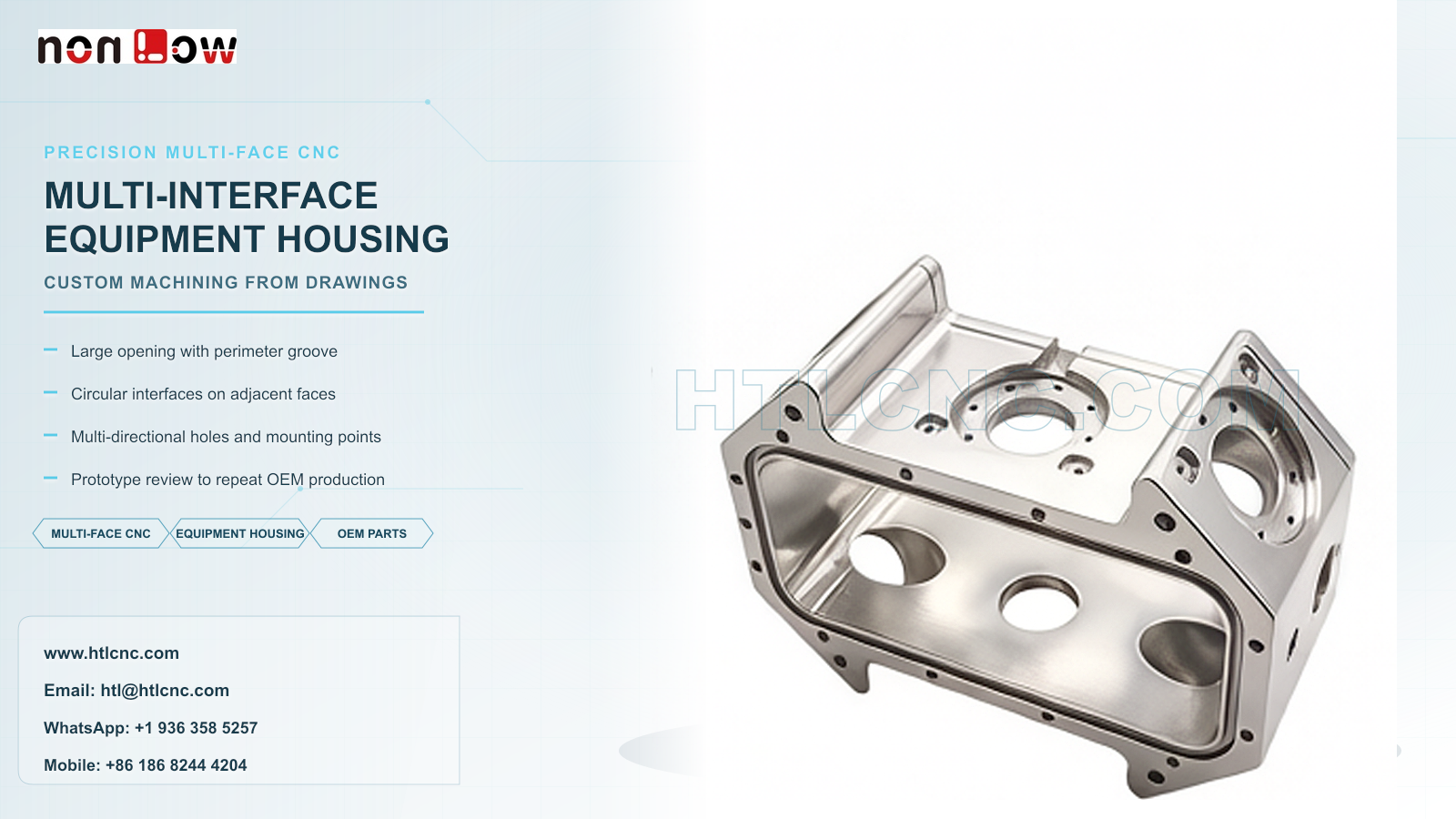

Multi-interface equipment housing CNC machining is required when one structural shell must connect several mating components across different faces. The pictured part visibly combines a large rectangular opening with a continuous perimeter groove, circular interfaces on the top and side faces, internal through-openings, perimeter fastener holes and local mounting features. HTL CNC provides custom CNC machining, precision CNC parts, multi-face milling, prototype validation, low-volume production and repeat drawing-based OEM manufacturing for overseas equipment builders, product-development companies, engineers and procurement teams. The image does not confirm material grade, tolerance, sealing performance, finish or final application; those requirements must be defined in the customer's released 2D drawing, STEP model and assembly specification.

What Makes a Multi-Interface Equipment Housing Difficult to Source?

The individual pockets and holes may appear conventional, but their relationships can determine whether surrounding components assemble correctly. A buyer therefore needs more than a general CNC quote. The supplier must understand which face seats the housing, which circular opening locates a mating part, whether the perimeter groove is functional and which holes are only for clearance.

For supplier qualification, the RFQ should include an assembly model or interface drawing in addition to the part file. This allows engineering review to separate critical interface relationships from noncritical internal clearance and cosmetic surfaces. It also supports a realistic inspection plan before prototype machining begins.

Build an Interface Map Before Selecting the Process Route

A useful interface map identifies the primary mounting face, secondary orientation reference, locating bores, fastener patterns, gasket or cover interface, internal clearance zones and any features approached from another direction. The released drawing should connect these items through an explicit datum structure rather than leaving the supplier to infer function from appearance.

This mapping helps determine which operations should remain in one setup and which can tolerate a controlled datum transfer. Features on adjacent faces may be machined with indexed 4-axis work, 5-axis CNC machining or qualified refixturing. The best route depends on part size, tool reach, inspection access, quantity and drawing relationships—not on axis count alone.

Large Opening and Perimeter Groove Machining

The broad front opening is surrounded by a continuous recessed groove and a perimeter hole pattern. The drawing should state whether the groove receives a gasket, cover, cable path or another component, because groove width, depth, corner condition, surface requirement and edge-break limits may change with function. HTL does not infer sealing performance from the visible geometry.

Machining normally needs a stable reference for the opening, groove and hole pattern. Roughing can establish access and remove bulk material, followed by controlled finishing of the interface and groove after the housing has reached a more stable condition. If the groove must remain continuous around corners, cutter diameter, interpolation strategy and inspection access should be reviewed during design-for-manufacturing discussion.

Circular Interfaces on Adjacent Faces

The top and side faces visibly contain circular openings with surrounding fastener features. These may be mounting, bearing, sensor, shaft, optical or general equipment interfaces, but the exact use cannot be confirmed from the image. The buyer should define diameter, fit, depth, perpendicularity, runout or positional requirements only where the assembly needs them.

If two circular interfaces must align to each other or to the front opening, the datum scheme and inspection report should preserve that relationship. A large bore that passes an isolated diameter check may still fail assembly if its axis or face position is not controlled relative to the housing datums.

Multi-Directional Holes, Threads and Edge Control

Fastener holes appear around the opening and on several external faces. The drawing should distinguish clearance holes, tapped holes, locating holes, counterbores and ports, and should define depth, thread engagement, edge distance and positional relationship where functional. Cross holes or features that break into an internal cavity also require an agreed deburring method.

Tool and probe access should be checked before fixture design is released. Inaccessible holes may require a different orientation, special tooling or a separate operation. A controlled process plan records how each setup recovers the part datums and how the first piece is verified before the batch continues.

Inspection Evidence for an Integrated Housing

A risk-based inspection plan may cover the mounting datum, overall profile, opening size, groove geometry, circular-interface size and position, face orientation, perimeter-hole location, thread acceptance and drawing-defined geometric controls. Measurement can combine calibrated hand tools, depth and bore gauges, pin and thread gauges, optical systems, CMM probing and approved fixtures according to feature access and tolerance.

First-article documentation should identify the part number, drawing revision, material lot when required and the measurement condition. For repeat OEM orders, controlled CNC programs, qualified fixtures, first-piece approval, tool-life monitoring and revision control help maintain consistency. Inspection records should remain linked to the purchase order and released revision.

Finishing, Cleaning and Export Packaging

The bright metal appearance does not prove a material or surface treatment. After the customer specifies the material and operating environment, an appropriate process may include anodizing, plating, passivation, blasting, polishing, painting or another finish. Precision bores, threads, datum faces and groove surfaces should be marked for masking, allowance or post-finish verification where coating thickness matters.

Multiple pockets, holes and grooves can retain chips or finishing media. Cleaning level, cosmetic zones and permitted edge breaks should be documented. Export packaging may use individual separation, protective covers or formed supports so machined interfaces and projecting features are not damaged during transport.

Prototype Validation and Repeat OEM Production

Prototype quantities allow the OEM to verify mating-component fit, access for fasteners, groove continuity, hole alignment, internal clearance and the proposed inspection method. Any pressure, sealing, load, vibration or life test requires customer-defined conditions and acceptance criteria; performance cannot be claimed from appearance.

After sample approval, the same released revision can move into low-volume ramp-up and repeat production. HTL's custom CNC machining service supports manufacturability review and process planning, while prototype and low-volume CNC machining provides a controlled path from engineering samples to recurring supply. Buyers can include annual demand, delivery cadence, packaging requirements and requested inspection documents during supplier onboarding.

RFQ Checklist for a Multi-Interface Housing

Send the released 2D drawing, STEP file and relevant assembly model. Include material, prototype quantity, production quantity or annual demand, datum scheme, critical interface relationships, groove requirements, hole and thread definitions, tolerances, surface finish, inspection-document scope, revision status, packaging, destination and target schedule. HTL CNC can then review the actual multi-interface equipment housing CNC machining project with a defined manufacturing and quality plan.
