One-Piece Deep-Cavity CNC Machined Enclosure with Integrated Bosses

B2B drawing-based CNC manufacturing for one-piece deep-cavity enclosures with integrated bosses, perimeter walls, interface openings and repeat OEM production support.

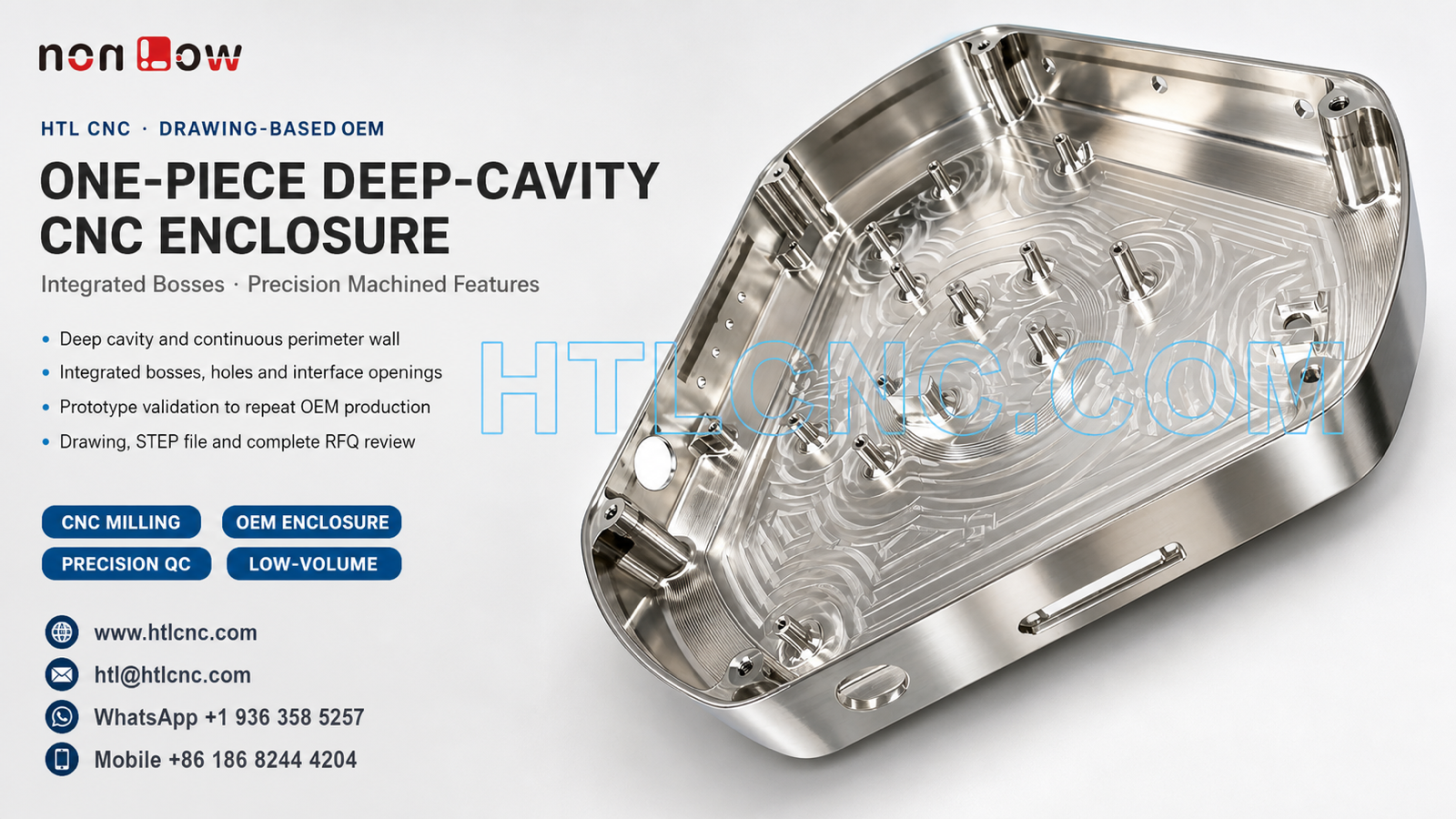

One-piece deep-cavity enclosures can combine protection, mounting and interface functions in a single machined component. The enclosure shown here has a broad internal cavity, a continuous perimeter wall, numerous integral bosses, machined floors, side openings and distributed holes. Consolidating these features can reduce separate components, but it also makes process planning, workholding, datum control and inspection important before an OEM program moves from prototype to repeat production.

HTL CNC provides drawing-based custom CNC machining for overseas OEMs, equipment manufacturers, product-development companies, contract manufacturers, engineers and procurement teams. We support engineering review, prototype verification, low-volume ramp-up and recurring orders. The exact material, dimensions, tolerances, finish and final application must follow the customer's released 2D drawing, STEP model and approved sample; they should not be inferred from a photograph.

B2B RFQ and Supplier Engineering Review

A useful quotation starts with a complete technical and commercial RFQ. Buyers should provide the released 3D model, 2D drawing, specified material, prototype quantity, expected batch size or annual demand, critical dimensions, thread requirements, surface-finish notes, inspection-document requirements, packaging needs and delivery destination. This information allows the manufacturing team to review stock condition, cavity depth, cutter access, setup count, fixture requirements, inspection time and lead-time planning against a defined scope.

Supplier qualification can also include confidentiality requirements, revision control, sample-approval criteria and communication responsibilities between engineering and procurement. Programs, fixture references and inspection records should remain linked to the approved drawing revision. When the enclosure design changes, the updated files and purchase-order revision should be released before the next batch begins.

Deep-Cavity Milling and Material Removal

The large cavity requires substantial material removal while retaining a tall outer wall and many internal features. Roughing strategy should consider tool engagement, chip evacuation, coolant access, remaining stiffness and finishing allowance. Removing material in controlled stages can preserve support around the perimeter and bosses until important faces are ready for finishing.

Deep areas may require longer tools, which can reduce rigidity and increase sensitivity to vibration or deflection. Cutter diameter, projection, internal corner radii and cavity depth should therefore be reviewed together. Rest machining may be used where smaller tools must reach material left by larger cutters. The selected route should follow the approved model and drawing rather than an assumed generic tolerance.

Integrated Bosses, Holes and Interface Openings

Integral bosses can provide direct mounting locations and reduce separate spacers or brackets. Their height, face relationship, hole position and thread condition may affect assembly fit when these characteristics are drawing-defined. Because the surrounding cavity is machined away, the process should protect each boss from excessive cutting force, tool collision and handling damage.

The enclosure also includes holes and openings on the perimeter and side faces. Depending on the released geometry, these features may require drilling, interpolation, tapping, thread milling or controlled access from additional orientations. Their positions should be related to the drawing datums, especially when they connect to a cover, connector, module or adjacent assembly. Thread specifications, depths, entry chamfers and any coating allowance must be included in the technical documents.

Perimeter Wall, Mating Face and Sealing Geometry

A continuous perimeter wall can support a cover or another mating component, but its functional requirements cannot be confirmed from appearance alone. If the design includes a gasket path, sealing face or controlled boundary, the drawing should define the relevant width, depth, flatness, surface condition and corner details. Toolpaths and deburring should preserve those features without creating unwanted steps or rounded edges.

The broad upper face and local mounting areas may require controlled relationships to the internal bosses and cavity floor. Workholding should secure the enclosure without forcing the perimeter away from its free-state geometry. Finished surfaces should be protected during reclamping, inspection and packaging.

Multi-Side Machining and Workholding Strategy

The main cavity is accessible from one direction, while distributed side openings and perimeter features may require additional setups, indexed positioning or multi-axis access. More axes do not automatically improve quality or cost. The correct route depends on feature access, datum continuity, tool reach, collision clearance, component rigidity, quantity and inspection needs.

Prototype quantities may use modular fixtures or soft jaws to support engineering changes. Repeat orders may justify controlled jaws, dedicated supports or documented fixture locations that improve loading consistency. Clamping force should be applied to rigid regions and verified so the part does not shift during roughing or spring after release.

Deburring and Customer-Specified Surface Treatment

Intersecting holes, cavity edges, side openings and threaded interfaces require controlled deburring. Sharp material should be removed without enlarging openings, rounding functional edges or damaging thread entries. Cleaning should remove chips and residue from deep corners and internal features before inspection and packaging.

The enclosure can be supplied as machined or with a customer-specified treatment compatible with the released material. Anodizing, plating, passivation, blasting, brushing, polishing, painting or another process should be considered only when defined by the RFQ. Coating allowance, masked areas, cosmetic zones, thread protection and acceptance criteria should be agreed before quotation.

Datum Planning and Inspection Documentation

The engineering drawing should identify the primary, secondary and tertiary datums that control the enclosure's functional relationships. Inspection may include overall profile, cavity depth, boss height and position, hole location, thread condition, perimeter geometry, mating-face relationships and any drawing-defined flatness, perpendicularity, position or profile requirements.

Calipers, micrometers, height measurement, pin and thread gauges, bore measurement, optical equipment and CMM inspection may be used according to feature geometry and the agreed quality plan. B2B customers should state which records are required with prototypes and repeat deliveries. The scope may include selected dimensional results, a first-article report, material or finishing documents from the relevant source, or batch inspection records when agreed in the purchase order.

Prototype Validation to Repeat OEM Production

Prototype quantities allow engineering teams to verify enclosure fit, mounting relationships, cover interfaces, hole alignment, thread engagement, edge condition and inspection methods. Procurement teams can use the same stage to evaluate communication, drawing confidentiality, revision handling, documentation, packaging and delivery performance before approving a machining supplier for recurring business.

After sample approval, controlled programs, repeatable workholding, defined inspection points and version management support low-volume ramp-up and stable repeat orders. Forecasts or annual demand help the supplier plan material purchasing, machine capacity, fixture investment, batch size, protective packaging and delivery schedules.

RFQ Information for Engineering and Procurement Teams

For an engineering and commercial review, send your released 2D drawing, STEP file, specified material, prototype and production quantities, annual demand, critical tolerances, thread specifications, inspection requirements, surface-finish notes, packaging needs and delivery destination. HTL CNC can then evaluate the actual enclosure geometry and purchasing scope instead of estimating from a photograph alone.
