One-Piece Structural Mounting Frame with Integrated Boss CNC Machining

B2B drawing-based CNC manufacturing for one-piece structural mounting frames with an integrated central boss, open pockets, profiled arms and repeat-order inspection planning.

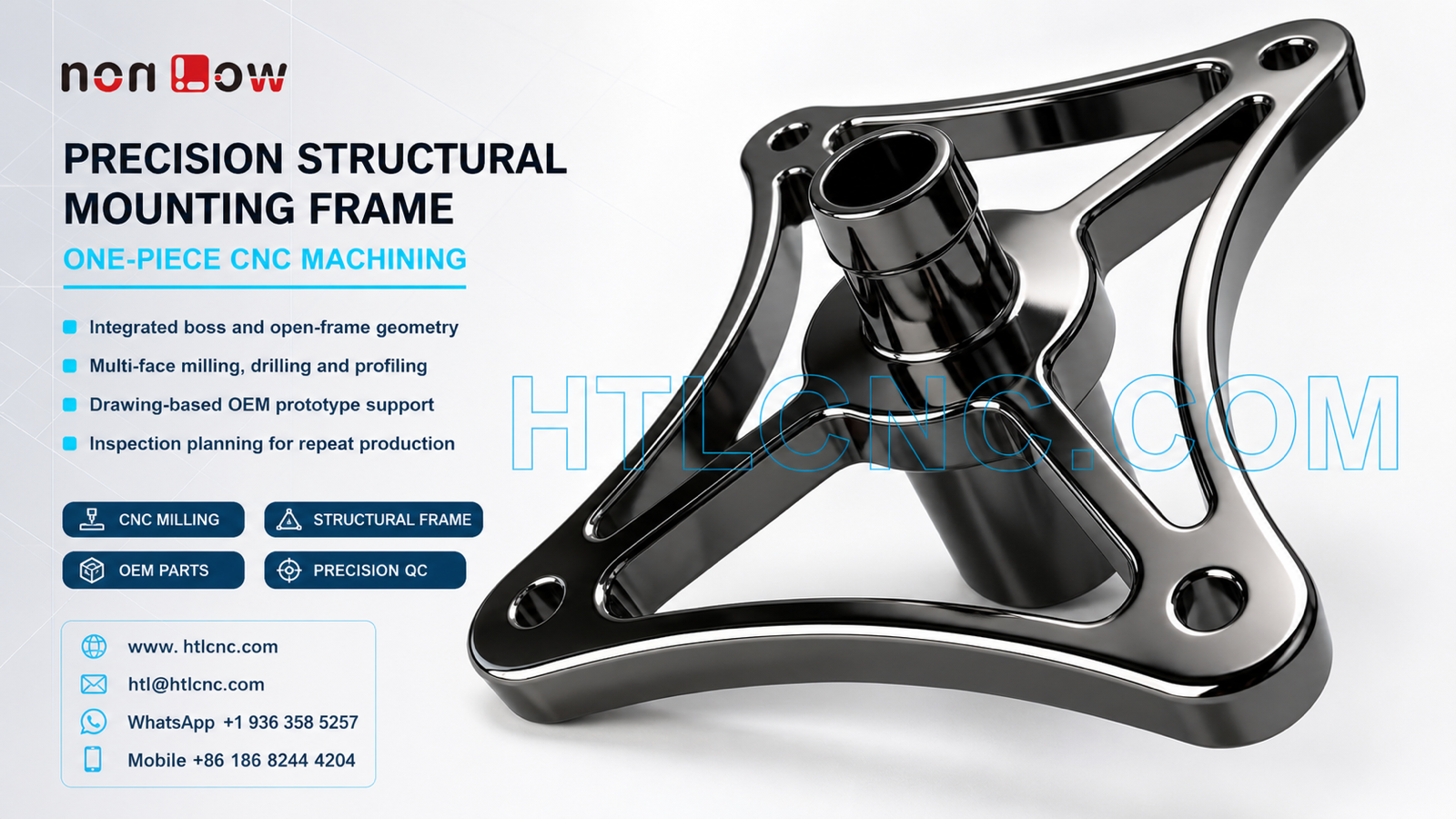

A one-piece structural mounting frame can combine alignment, load transfer and assembly interfaces without relying on several separate brackets. The component shown here has a triangular open-frame profile, three profiled arms, a large integrated central cylindrical boss, broad internal openings and mounting holes distributed near the outer corners. These visible features make workholding, datum selection, material-removal sequence and inspection planning important before an OEM program moves from prototype verification to repeat production.

HTL CNC provides drawing-based custom CNC machining for overseas OEMs, equipment manufacturers, product-development companies, contract manufacturers, engineers and procurement teams. The exact material, dimensions, tolerances, finish and final application must follow the customer's released 2D drawing, STEP model and approved sample; they should not be inferred from a product image.

Supplier Qualification and Complete RFQ Scope

A useful sourcing review begins with a complete technical and commercial RFQ. Buyers should provide the released 3D model, 2D drawing, specified material, prototype quantity, expected batch quantity or annual demand, critical dimensions, finish notes, inspection-document requirements, packaging expectations and delivery destination. This information allows the machining supplier to review stock form, tool access, setup count, fixture requirements, inspection time and delivery planning against a defined scope.

Supplier onboarding can also include drawing confidentiality, revision control, sample-approval criteria and communication responsibilities between engineering and procurement. Programs, fixture references and inspection records should remain linked to the approved revision. When the mounting frame or mating assembly changes, updated files and purchase-order revisions should be released before the next production batch.

Integrated Boss and Open-Frame Geometry

The central cylindrical boss is integrated into the surrounding frame rather than assembled as a separate spacer. Its bore, face height, outside profile and positional relationship to the corner mounting interfaces may be functionally important when specified on the drawing. Machining the boss and surrounding faces from controlled datums can support consistent assembly relationships, but the required tolerance and geometric control must be defined by the customer.

The large internal openings reduce material and create access around the central feature. They also leave long profiled arms and local transitions that can become less rigid as material is removed. Cutter engagement, tool projection, internal radii, finishing allowance and cutting order should therefore be reviewed together. The process should preserve support around critical faces until the frame reaches a stable machining stage.

Multi-Face Milling, Drilling and Profiling

Visible features are distributed across the top surface, central bore, outer profile and mounting interfaces. A controlled multi-setup process, indexed machining or multi-axis access may be considered according to the released geometry, quantity and datum relationships. More axes do not automatically improve cost or quality; the selected route should balance tool reach, fixture stability, collision clearance, handling risk and inspection access.

Profile milling creates the curved outer boundary and the open internal windows. Drilling, interpolation, boring, reaming or threading may be selected for the central and corner features according to their drawing definitions. Edge breaks and deburring should remove sharp material without enlarging holes, rounding functional seating faces or changing the intended profile.

Workholding and Free-State Stability

Open structural frames can offer limited clamping area after the major windows have been machined. Initial operations may use stock surfaces, while later setups can locate from established datum faces, soft jaws, modular supports or dedicated fixtures. Clamping force should be applied to rigid regions so the part is not temporarily distorted during machining and then allowed to move after release.

Prototype quantities may use adaptable workholding that supports engineering changes. Repeat orders may justify documented jaw locations, controlled supports and defined loading instructions. The component should be checked after removal from the fixture so inspection represents its free-state condition rather than a temporarily constrained shape.

Inspection Planning for Assembly Interfaces

The drawing should identify the primary, secondary and tertiary datums controlling the frame's assembly relationships. Inspection may include the central bore and boss geometry, corner-hole locations, mounting-face relationships, overall profile, arm thickness and any specified flatness, perpendicularity, position or profile requirements.

Calipers, micrometers, height measurement, pin or thread gauges, bore measurement, optical equipment and CMM inspection may be used according to feature geometry and the agreed quality plan. Overseas procurement teams should state which records are required with samples and repeat deliveries. The scope may include selected dimensional results, a first-article report, material or finishing documents from the relevant source, or batch inspection records when agreed in the purchase order.

Surface Finish, Handling and Export Packaging

The frame can be supplied as machined or with a customer-specified treatment compatible with the released material. Anodizing, plating, passivation, blasting, polishing, painting or another finish should not be assumed from appearance. Coating allowance, masked faces, hole protection, cosmetic zones and acceptance criteria should be confirmed before quotation.

Reflective or cosmetic surfaces require controlled handling through cleaning, inspection and packing. Protective separation, trays or other export packaging may be appropriate for repeat orders where contact marks are unacceptable. Labeling, batch identification and delivery planning should be included when they form part of the purchasing requirement.

Prototype Validation to Repeat OEM Orders

Prototype quantities allow engineering teams to verify mounting fit, boss alignment, bore relationship, edge condition and inspection methods. Procurement teams can use the same stage to evaluate responsiveness, drawing control, documentation, packaging and delivery performance before approving low-volume ramp-up or recurring purchase orders.

After sample approval, controlled programs, repeatable workholding, defined inspection points and revision management support consistent repeat production. Forecasts or annual demand help the supplier plan raw material, machine capacity, fixture investment, batch size, packaging and delivery schedules.

RFQ Information for Engineering Review

For engineering and commercial review, send your released 2D drawing, STEP file, specified material, prototype and production quantities, annual demand, critical tolerances, inspection requirements, surface-finish notes, packaging needs and delivery destination. HTL CNC can then evaluate the actual structural-frame geometry and purchasing scope instead of estimating from an image alone.
