Precision CNC Cylindrical Equipment Housing with Front Circular Interface

Precision CNC cylindrical equipment housing machining coordinates a front circular mounting interface, four-hole pattern, top cylindrical port, deep internal cavity and side support features for drawing-based OEM production.

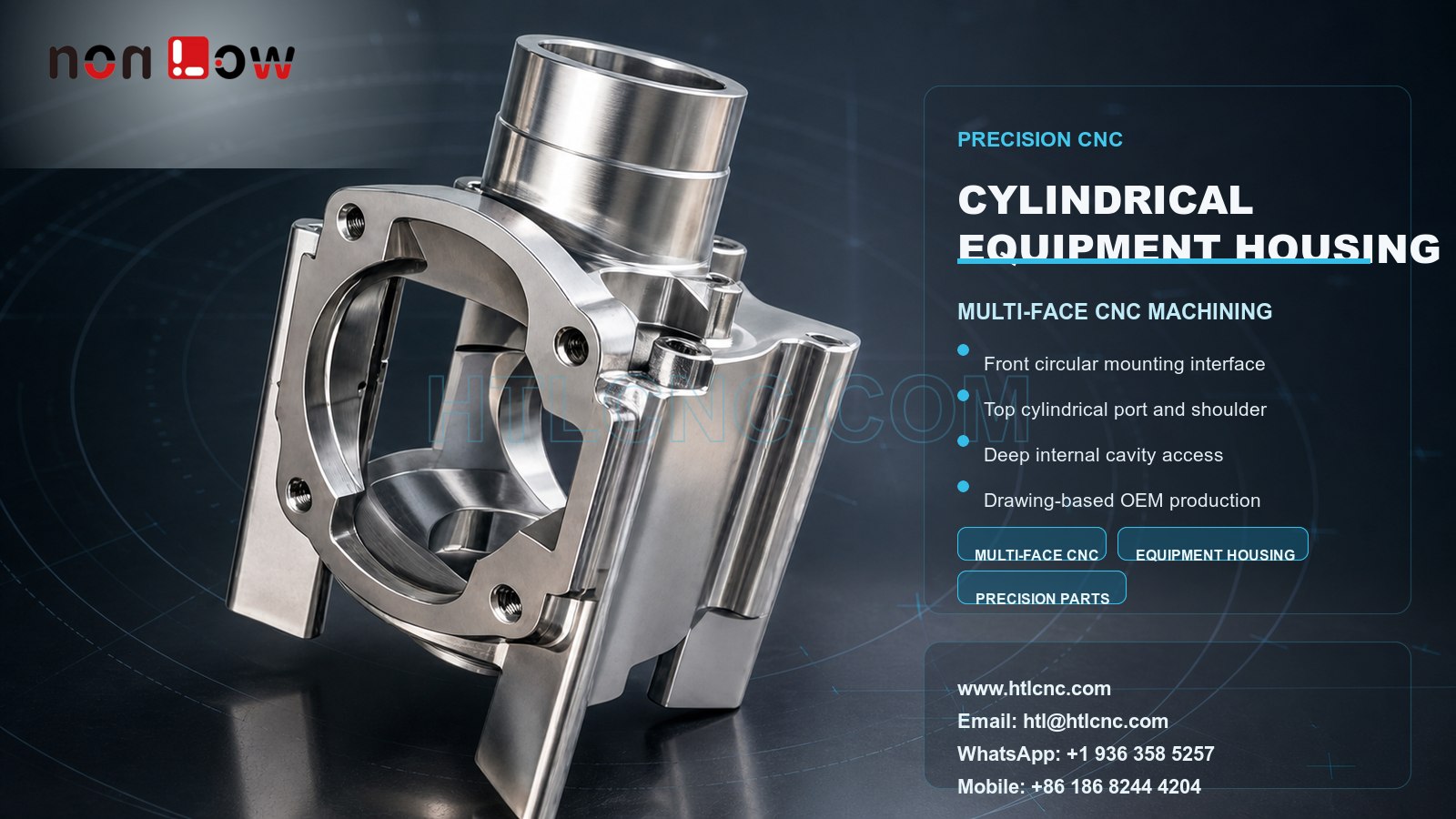

Precision CNC cylindrical equipment housing machining brings several functional directions into one integrated body. The pictured component visibly includes a large front circular mounting interface with four surrounding holes, a top cylindrical port and shoulder, a deep internal cavity, side openings, rails and lower support features. HTL CNC provides custom CNC machining, precision CNC parts, multi-face CNC milling, prototype validation, low-volume production and repeat OEM manufacturing for overseas equipment builders, product-development companies, contract manufacturers and procurement teams. The image does not establish material grade, tolerance, sealing duty or final application; those requirements must come from the customer's released 2D drawing, STEP model and assembly data.

What Makes This a Multi-Face Cylindrical Housing?

The front ring, top port, internal cavity and side features approach the cutter from different directions. Their individual dimensions matter, but assembly performance also depends on the relationship among their axes, seating faces, hole patterns and lower locating condition. A supplier should therefore review the complete datum structure before choosing equipment or quoting production.

Mating-part information can identify which circular feature locates the assembly, which surfaces only provide clearance and whether the top port relates functionally to the front axis. This context helps convert a visible product shape into a controlled drawing-based manufacturing plan.

Front Circular Interface and Four-Hole Pattern

The front face visibly contains a large circular opening or seat and four smaller surrounding holes. The released drawing should define the controlled diameter, shoulder depth, face condition, hole type, center locations and the relationship of the pattern to the principal axis. No specific fit, thread or geometric tolerance can be inferred from the photograph.

Possible operations include face milling, circular interpolation, boring, drilling, reaming or threading according to size and requirements. Completing related features from a qualified datum can help protect their positional relationship. Inspection may use bore gauges, depth tools, pin or thread gauges, optical systems, height measurement or CMM probing as appropriate.

Top Cylindrical Port and Annular Shoulder

The upper region has a raised cylindrical neck with an internal opening and visible shoulder. Its function may involve locating, connecting or providing access, but the actual purpose must be confirmed by the customer. The RFQ should state diameter, depth, shoulder height, surface requirement and any required relationship to the front circular interface.

Depending on stock form and geometry, process planning may use turning, boring, interpolation or a coordinated milling route. HTL's [CNC turning and turn-mill machining capability](/services/cnc-turning-turn-mill-machining) can be evaluated where rotational features and secondary interfaces benefit from setup consolidation; it is not assumed to be mandatory for this part.

Deep Internal Cavity and Tool Access

The open internal region contains changing levels and restricted areas. Roughing must remove material while retaining sufficient stiffness for finishing. Tool diameter, projection, chip evacuation, local wall thickness and clamping support can influence both cycle time and dimensional stability.

A practical process may rough the cavity in stages, leave controlled finishing stock and complete important floors, walls and openings after the body is stable. Internal corners should use radii compatible with assembly needs and realistic cutter access. Hidden intersections also need a defined deburring and cleaning method.

Side Rails, Openings and Workholding Strategy

Side rails, lower feet and local openings create additional clamping and access constraints. Workholding should avoid placing force on thin or already finished regions while leaving the front, top and internal features accessible. For prototypes, flexible fixtures may support engineering changes; repeat orders may justify qualified soft jaws or dedicated locating tools.

HTL's [custom CNC machining service](/services/custom-cnc-machining) reviews the complete model, datum logic, batch size and inspection scope before selecting the setup sequence. Stable workholding and controlled datum transfer are more important than promoting a particular machine axis count.

Selecting 3-Axis, Indexed 4-Axis or 5-Axis Machining

Some versions may be produced by 3-axis machining with qualified refixturing. Indexed 4-axis or [5-axis CNC machining](/services/5-axis-cnc-machining) can be considered when access from several directions reduces setups or better preserves relationships among the front ring, top port and side features.

Axis count alone does not guarantee accuracy. The selected route must balance rigidity, tool reach, machine envelope, fixture access, batch quantity, inspection effort and total cost. A responsible quotation should identify the critical datums and the features completed in each setup.

Inspection Evidence for Supplier Qualification

A risk-based plan may cover the front diameter and face, four-hole position, top-port diameter and shoulder, cavity depth, side-feature location, lower support relationship and drawing-defined geometric controls. Measurement methods can include micrometers, bore gauges, depth tools, pin and thread gauges, optical measurement, height systems and CMM inspection according to access and tolerance.

Overseas OEM procurement teams may request first-article data, selected dimensional reports or production-lot records for agreed critical characteristics. Report format, sampling frequency, traceability and retention should be settled before quotation. Every record should reference the correct part number, drawing revision and production lot.

Prototype Assembly Validation and Repeat OEM Production

Prototype evaluation should use the actual mating assembly whenever possible. Engineering teams can check front-interface seating, four-hole alignment, top-port clearance, internal component access, fastener reach and side interference. Corrections should be released through updated 2D and STEP files rather than informal messages that create revision ambiguity.

After sample approval, controlled programs, qualified fixtures, first-piece checks, tool-life monitoring and version management support repeat-order consistency. HTL's [prototype and low-volume CNC machining service](/services/prototype-low-volume-cnc-machining) provides a staged path from engineering samples to low-volume ramp-up and recurring OEM supply.

Surface Finish and Export Packaging

The metallic appearance does not confirm material or treatment. Customers may specify an as-machined condition, anodizing, plating, passivation, blasting, polishing, painting or another compatible finish after material confirmation. The specification should identify protected bores, masked seating faces, coating allowance, threads and cosmetic zones.

The raised top port, front ring and exposed support features require protection during transport. Caps, separators, individual wrapping or formed trays can reduce impact and metal-to-metal contact. Packaging labels should connect part number, revision, quantity and lot to the supplied inspection documents.

RFQ Checklist for Drawing-Based Manufacturing

Send the released 2D drawing and STEP file with material requirements, prototype and production quantities, annual demand, front-interface function, top-port definition, datum relationships, threads, surface finish, inspection-document scope, packaging expectations, destination and requested delivery date. Include mating-part information when the front ring, top port or internal cavity must work with related components. HTL CNC can then prepare a manufacturing, inspection and delivery plan based on controlled requirements.
