Drawing-based B2B CNC manufacturing for precision equipment enclosures with repeated heat-dissipation grooves, rounded external geometry and machined side interface openings.

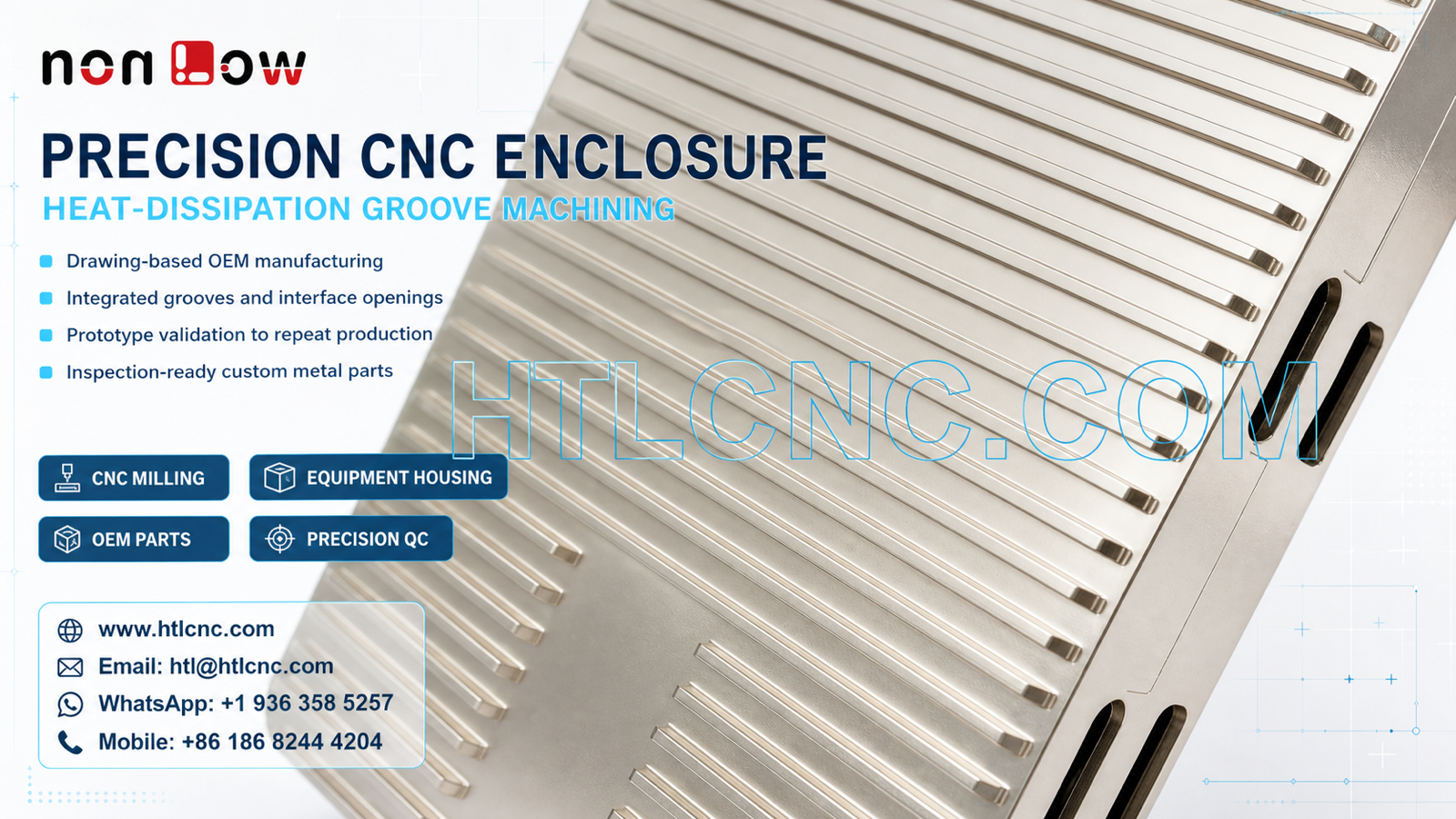

A precision equipment enclosure can combine mechanical protection, thermal-management surfaces and external interfaces in one machined body. The component shown here has a broad rounded rectangular face, repeated parallel grooves across the main surface, a defined perimeter, and elongated interface openings on the side wall. These visible features create a sourcing project that requires coordinated review of machining access, surface consistency, datum relationships, edge quality and inspection planning.
HTL CNC supports overseas OEMs, equipment builders, product-development companies, contract manufacturers, engineers and procurement teams with drawing-based custom CNC machining. The exact material, dimensions, tolerances, surface treatment and end use must follow the customer's released 2D drawing, STEP model and approved sample. They should not be inferred from a product photograph.
Supplier Qualification Starts with a Complete Engineering RFQ
A useful supplier review needs more than a reference image. Buyers should provide the released 3D model, controlled 2D drawing, specified material, prototype quantity, expected batch size or annual demand, critical dimensions, cosmetic requirements, surface-finish notes, inspection-document expectations, packaging requirements and delivery destination.
This information allows the manufacturing team to evaluate stock form, setup count, cutter access, workholding, groove-machining time, side-feature access, deburring, measurement resources and delivery planning against a defined commercial scope. Drawing confidentiality, revision control, sample-approval criteria and communication responsibilities should also be agreed during supplier onboarding.
Repeated Groove Machining Across a Broad Surface
The main face contains many long, parallel grooves with rounded terminations. Their repeated spacing and direction make toolpath consistency and surface appearance important, especially if the customer identifies the face as a cosmetic or thermal-management zone. Groove width, depth, pitch, end geometry and relationship to the outer perimeter must be taken from the released design.
Depending on the specified geometry, the grooves may be produced with controlled CNC milling passes using suitable cutter engagement and programmed step-over. Tool condition, runout, chip evacuation and cutting direction can influence edge definition and visible consistency. The process plan should protect the surrounding broad face while avoiding burrs or witness marks at the groove ends.
Rounded Perimeter and Enclosure Geometry
The enclosure has a rounded rectangular outline and blended corner regions. Machining and inspection should preserve the relationship between the broad face, perimeter, side wall and any drawing-defined assembly surfaces. If the enclosure mates with a cover, internal module or adjacent component, the drawing should clearly identify the functional datums and controlled interfaces.
Workholding should support the component without forcing broad surfaces or thin regions away from their natural free-state condition. Prototype fixtures may remain adaptable for engineering changes, while repeat orders can justify documented jaw locations, defined support points and controlled loading instructions.
Side Interface Openings and Multi-Face Access
The side wall includes elongated openings and surrounding machined boundaries. Their exact purpose should not be assumed from the image, but their size, position, corner radii and relationship to the main face may affect final assembly. The manufacturing route may require additional setups, indexed positioning or multi-axis access according to the released model and tolerance structure.
Reducing unnecessary reclamping can help maintain relationships between the main face and side features, but machine selection should follow the actual geometry rather than appearance alone. Cutter reach, fixture clearance, collision risk, chip evacuation and inspection access all need to be reviewed before the process is approved.
Deburring, Surface Treatment and Cosmetic Handling
Long grooves and elongated openings create many edges that require controlled deburring. Sharp material should be removed without changing groove dimensions, enlarging ports, rounding drawing-defined corners or damaging adjacent cosmetic surfaces. Cleaning should remove chips and residue from grooves, corners and openings before inspection.
The part may be supplied as machined or with a customer-specified treatment compatible with the released material. Anodizing, plating, passivation, blasting, brushing, polishing, painting or another finish should be evaluated only when defined by the RFQ. Coating allowance, masked interfaces, thread or port protection, color requirements and cosmetic acceptance criteria should be agreed before quotation.
Inspection Planning for Prototype and Repeat Orders
The quality plan can include overall profile, enclosure thickness, groove geometry, opening dimensions, hole or port locations, edge condition and relationships between functional faces. Calipers, micrometers, height measurement, pin or profile gauges, optical equipment and CMM inspection may be used according to the drawing and agreed inspection scope.
Overseas procurement teams should specify which records are required with prototypes and recurring deliveries. The agreed package may include selected dimensional results, a first-article inspection report, material or finishing documents from the relevant source, and batch inspection records. Requirements should be stated in the purchase order rather than assumed after production.
From Prototype Validation to Repeat OEM Production
Prototype quantities allow engineering teams to evaluate assembly fit, port alignment, groove appearance, edge quality, surface-treatment needs and inspection methods. Procurement teams can use the same stage to assess drawing control, response time, documentation, packaging and delivery performance before approving low-volume ramp-up or recurring orders.
After sample approval, controlled programs, repeatable workholding, defined inspection points and version management support production consistency. Annual demand and forecast information help the supplier plan material purchasing, machining capacity, fixture investment, packaging and shipment schedules.
RFQ Information for Engineering Review
For engineering and commercial review, send the released 2D drawing, STEP file, specified material, prototype and production quantities, annual demand, critical tolerances, surface-finish requirements, inspection-document scope, packaging needs and delivery destination. HTL CNC can then evaluate the actual enclosure geometry and purchasing requirements instead of estimating from an image alone.
