Precision CNC T-Shaped Mounting Housing: Turning and Multi-Face Milling

Precision CNC T-shaped mounting housing machining coordinates a vertical bore and shoulder, rounded transverse body, central base clearance and twin mounting holes for drawing-based OEM production.

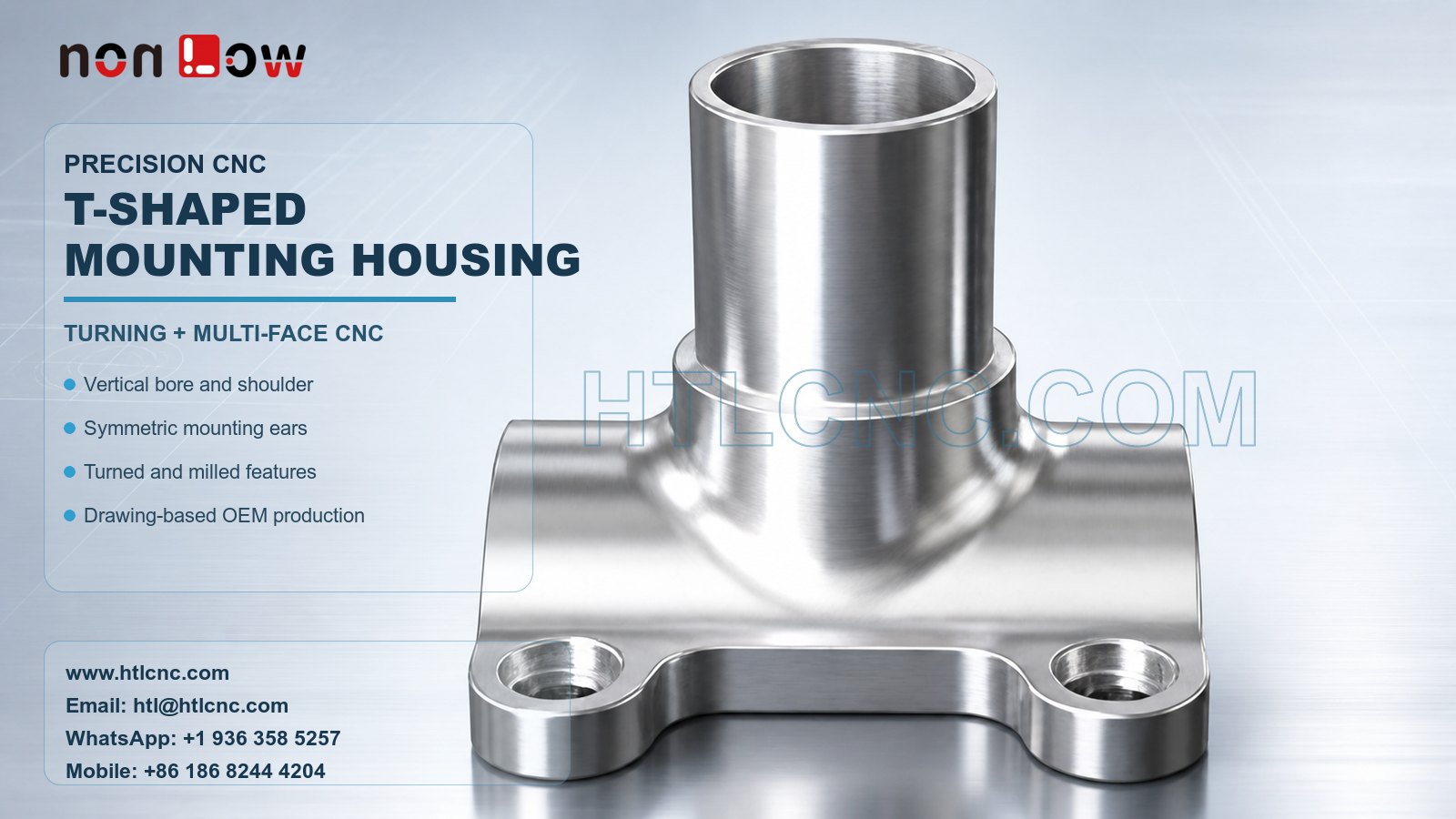

Precision CNC T-shaped mounting housing machining combines rotational and prismatic features in one compact part. The pictured component visibly includes a tall vertical cylindrical interface with a central bore, an annular shoulder, a rounded transverse body, a central lower clearance and two symmetric mounting ears with holes. HTL CNC supports custom CNC machining, CNC turning, multi-face CNC milling, precision CNC parts, prototype validation, low-volume production and repeat OEM manufacturing for overseas equipment builders, engineering teams and procurement organizations. The photograph does not establish material grade, tolerance, loading direction or final application; those requirements must be defined by the customer's released drawing, STEP model and assembly data.

Start the RFQ with the Assembly Datum Structure

The vertical bore, shoulder and lower mounting surface may participate in one locating chain. A useful RFQ should identify which face establishes the primary installation datum, whether the bore locates a mating member, and how the twin mounting holes relate to that interface. Without this information, a supplier can quote visible geometry but cannot plan functional verification responsibly.

Mating-part data or an assembly section helps engineering teams distinguish controlled fits from clearance features. The released 2D drawing should define required diameters, depths, positional relationships, threads and geometric controls rather than relying on the product image.

Vertical Bore and Annular Shoulder

The tall cylindrical neck presents turned features: an internal bore, upper face, outside diameter and lower annular shoulder. Depending on stock form, size and requirements, process planning may use CNC turning, boring, interpolation or a qualified combination. The objective is not to claim one universal route, but to preserve the drawing-defined relationship between bore, outside diameter and seating face.

Inspection may include micrometers, bore gauges, depth tools, height systems or CMM measurement where appropriate. If the bore receives a bearing, tube, shaft or another mating feature, the customer should supply the actual fit and surface requirements; none can be inferred from appearance.

Rounded Transverse Body and Multi-Face Access

The horizontal body creates cross-face geometry around the neck transition. Its rounded outer form, local shoulders and lower clearance may require milling after the rotational features are established. Workholding must provide access without marking a controlled surface or distorting the body.

A [CNC turning and turn-mill machining](/services/cnc-turning-turn-mill-machining) route may reduce datum transfers for suitable geometry. Conventional turning followed by multi-axis milling can also be effective when machine envelope, quantity or feature access favors separate operations. Machine type is selected from the released requirements, not from a marketing label.

Twin Mounting Holes and Base Relationship

Two mounting ears and two visible holes create the lower installation interface. Buyers should define hole type, diameter or thread, center distance, edge distance and position relative to the vertical bore. The lower central opening may provide assembly clearance, so its width, height and corner condition should also be dimensioned when functional.

For repeat production, a stable base datum and controlled fixture location help protect the bore-to-hole relationship. Inspection can use gauges, optical measurement, height measurement or CMM probing according to tolerance and documentation scope.

Managing the Neck-to-Body Transition

The transition from the cylindrical neck into the transverse body affects cutter access and local stiffness. Roughing strategy, remaining stock, tool engagement and finishing sequence should be reviewed against the actual material and geometry. Deburring must remove loose edges without changing a controlled shoulder, bore entrance or mounting face.

If a radius is functional, it should be identified explicitly on the drawing. Visual smoothness alone does not define allowable tool marks, blend condition or inspection method.

Prototype Validation Before OEM Ramp-Up

Prototype review should use the intended mating components where possible. Engineering teams can confirm bore engagement, shoulder seating, base contact, fastener access, center-hole alignment and lower clearance. Findings should be released through updated 2D and STEP files before the part moves into low-volume or recurring orders.

The [prototype and low-volume CNC machining service](/services/prototype-low-volume-cnc-machining) supports a staged path from engineering samples to controlled production. After approval, version-controlled programs, qualified workholding, first-piece checks, tool-life controls and lot identification support repeat-order consistency.

Inspection Evidence for Supplier Qualification

A risk-based plan may cover bore size, concentric or positional relationships where specified, shoulder height, base flatness, mounting-hole spacing, lower-clearance profile and drawing-defined geometric controls. Overseas OEM procurement teams may request first-article data, selected dimensional reports or production-lot records for agreed critical characteristics.

Report format, sampling frequency, traceability and retention should be agreed before quotation. Every record should reference the correct part number, drawing revision and production lot so that later repeat orders use the approved configuration.

Surface Finish and Export Packaging

The metallic appearance does not confirm material or treatment. Customers may specify an as-machined condition, anodizing, plating, passivation, blasting, polishing, painting or another compatible finish after material confirmation. The specification should identify protected bores, masked seating faces, coating allowance, threads and cosmetic zones.

The tall neck and exposed mounting ears require protection during transport. Caps, separators, individual wrapping or formed trays can reduce impact and metal-to-metal contact. Packaging labels can connect part number, revision, quantity and lot to the accompanying inspection documents.

RFQ Checklist for Drawing-Based Manufacturing

Send the released 2D drawing and STEP file with material requirements, prototype and production quantities, annual demand, bore and shoulder functions, mounting-hole definitions, datum relationships, surface finish, inspection-document scope, packaging expectations, destination and requested delivery date. Include mating-part information when the vertical interface and base holes must work as one assembly. HTL CNC can then review the actual T-shaped mounting housing and prepare a manufacturing, inspection and delivery plan based on controlled requirements.
